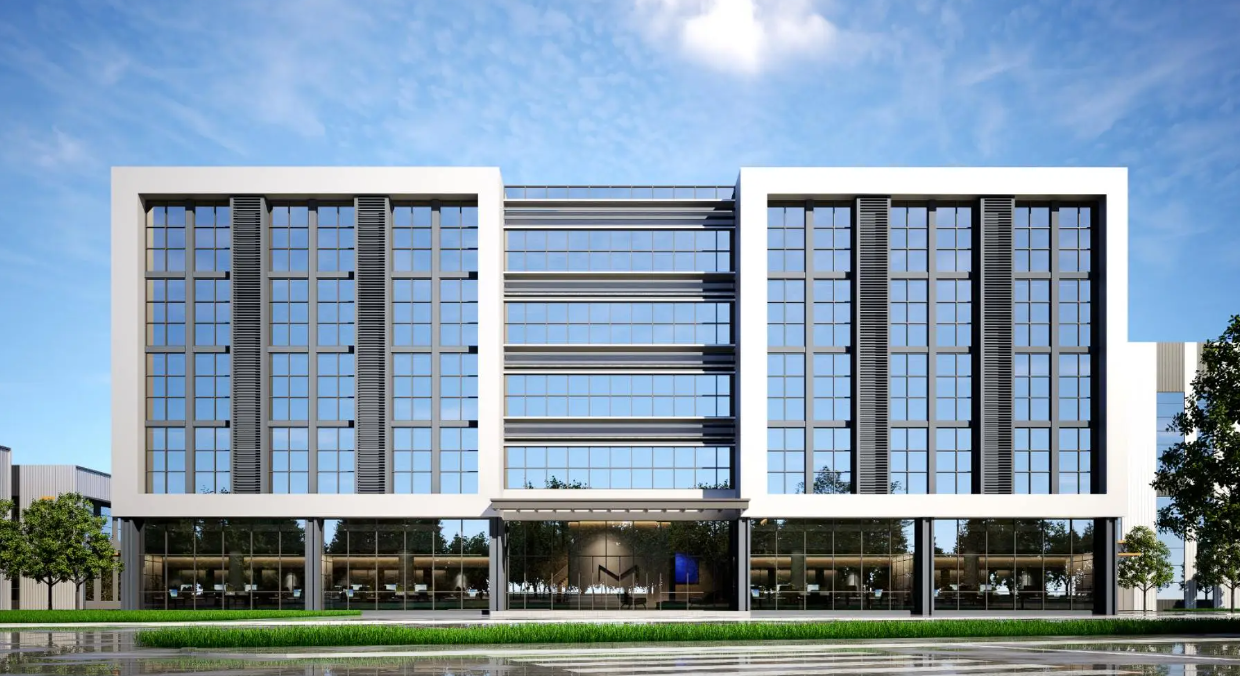

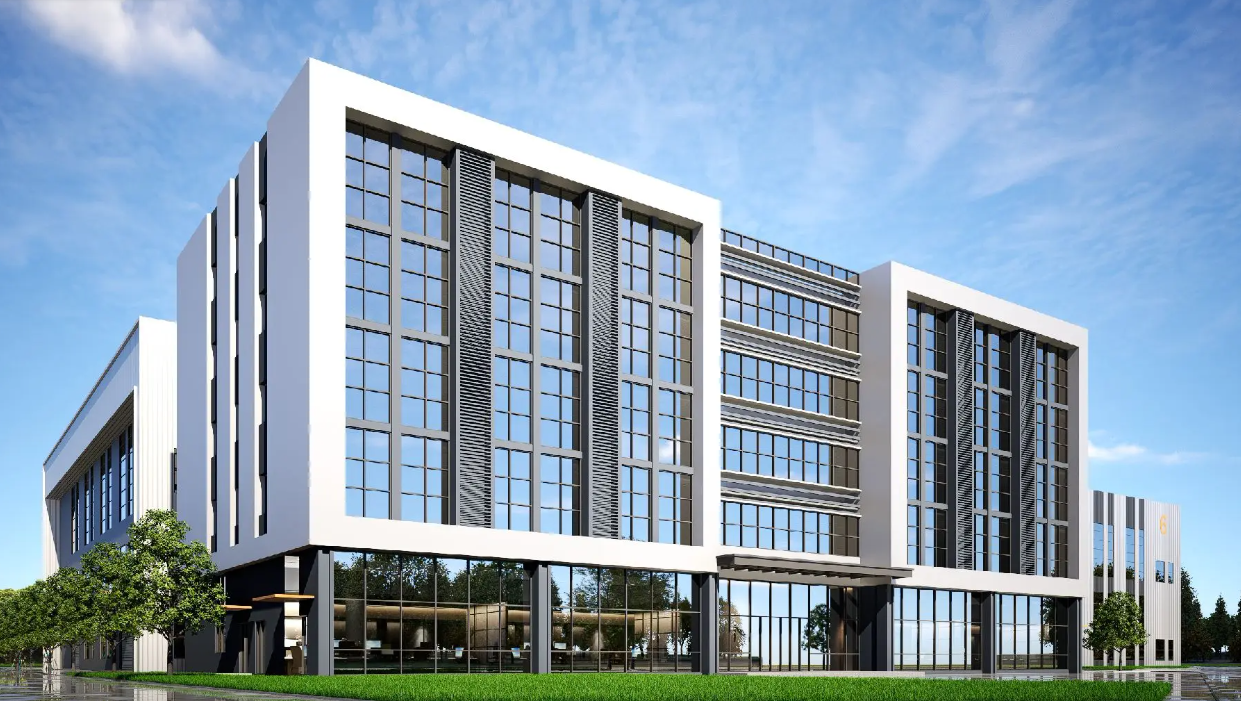

Solid galvanized H-shaped steel structure prefabricated commercial office building
steel structure building is a new form in building construction, which is made from the organized combination of custom-designed structural steel members to meet architecture and engineering requirements of users. Steel structure involves sub-structure or members in a building made from structural steel,linked and fixed by welding, bolts and rivets.
| Building name | Steel structure office building |

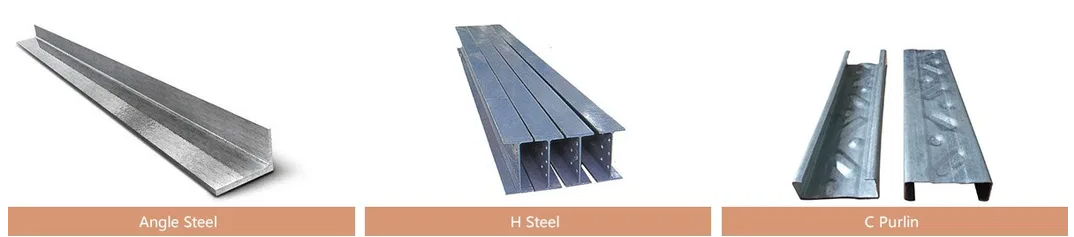

| Specific Material | Specification | Usage |
| Hot Rolled H-Beam | Cross-sectional dimensions determined according to architectural design, such as 300×300×10×15, etc. | Used to construct steel beams and columns, bearing main vertical and horizontal loads |
| Welded H-Beam | Customized to meet special cross-sectional requirements | Suitable for parts with special requirements for steel performance or complex structures |
| Channel Steel | Common specifications such as 8#, 10#, 12#, etc. | Used for auxiliary support structures and construction of secondary components |
| Angle Steel | Unequal-leg angle steel such as L50×32×4, equal-leg angle steel such as L40×4, etc. | Connect and reinforce component joints, enhance structural stability |
| Steel Plate | Thickness ranging from 3mm to 50mm | Used to make gusset plates and stiffeners. Profiled steel sheets can be used for some floor slabs |
| High-Strength Bolts | Grade 8.8, Grade 10.9, etc. | Connect key joints such as steel beams and columns, and steel beams and steel beams to ensure structural integrity |
| Ordinary Bolts | Grade 4.8, etc. | Used for some secondary connection parts, such as the connection between the maintenance structure and the main structure |
| Anchor Bolts | Customized according to foundation design | Fix steel columns to the concrete foundation and transfer the load of the upper structure |
| Nuts, Washers | Supporting high-strength bolts and ordinary bolts | Assist in tightening bolts, prevent loosening, and disperse pressure |
| Welding Materials | Electrodes (such as E43 series, E50 series), welding wires (such as ER50-6) | Select matching welding materials according to the steel material |
| Package Size | 100.00cm * 100.00cm * 100.00cm |
| Package Gross Weight | 100.000kg |
Technical parameters:
1. Main Steel Structure: Use build-up steel column, welded H-beam steel
2. Purlin: C-type steel
3. Roop panel: Single steel sheet or sandwich panel
4. Wall panel: The same to roof panel
5. Tie bar: Welded-round tube
6. Brace: Round steel
7. Column brace and lateral brace: Angle steel
8. Crane: 3T-30T
9. Angle brace: Hot-rolled angle steel
10. Edge: Color plate
11. Gutter: Stainless steel
12. Down pipe: PVC Pipe
13. Door: Sandwich-panel door or Rolling door
14. Window: Aluminum alloy window or PVC window
Product Advantages:
1. Light weight, high strength, 50 years of durable use, no construction waste.
2. Quality certification ISO:9001:2008
3. Cost consideration: save time and cost;
4. Easy to move, recyclable materials, environmental protection;
5. Widely used, used as factories, warehouses, office buildings, hangars, etc.;
6. The structure is durable and easy to maintain.
Why Choose Us
We have a professional and creative design team that can communicate deeply with our clients to accurately understand their functional needs, space planning expectations and style preferences. Whether it is the pursuit of modern and simple style, or want to integrate unique corporate culture elements, the design team can rely on rich experience and cutting-edge design concepts, using advanced design software, to tailor exclusive steel structure office building design solutions for customers. In the design process, the structural rationality and safety of the building and the retrofit of the later stage are fully considered to ensure that the scheme not only meets the current needs, but also reserves space for future development.
We have strong strength and rich experience in construction. It has a professional construction team, and the construction personnel have undergone strict training and are proficient in all kinds of advanced construction technology and technology. During the construction process, the mode of combining industrial prefabrication and on-site assembly is adopted, and the steel components are accurately processed in the factory to ensure that the quality of the components is stable and the dimensional accuracy is high. Strictly follow the construction plan, efficiently promote the project progress, and always put quality control in the first place, strictly inspect each construction process to ensure that the construction quality of the steel structure office building meets or even exceeds the industry standard.
Providing all-round and full-process project management services is a major feature of steel structure companies. From the pre-planning of the project start-up, to the progress control, quality supervision, safety management in the construction process, to the acceptance and delivery after the completion of the project, there is a professional project management team responsible for it. In the process of material procurement, high-quality suppliers are carefully selected to ensure that the quality of each batch of steel and related auxiliary materials is reliable and the price is reasonable. At the construction site, reasonably arrange construction personnel and machinery and equipment, optimize the construction process, and avoid waste of resources and construction conflicts. Establish a sound communication mechanism, regularly report the progress of the project to the customer, answer the customer's questions in a timely manner, ensure the smooth progress of the project, and let the customer have no worries throughout the process.
Choosing our steel structure storage products is to choose professionalism, quality, efficiency and value. We look forward to working with you to create exceptional construction projects.
Company Profile
China CT Steel Structure Co.,Ltd of BY GROUP is a comprehensive industrial group integrating for steel structure design, manufacture and installation. We have estabulished over 21 years.The factory covers an area of 30 hectares.
Main products: steel structural warehouse, workshop, high rise steel building, school, hotel,office building, exhibition building, show room, shopping mall, stadium,Agricultural project (stable/cattle barn, poultry house,pig house), car parking, hangar,shed,storage room, prefab house, container house, Sandwich panel,corrugated steel sheet, C&Z sec- tion steel, door and windows and cranes.
Packing: we pack all the parts on the steel pallet and push into the container when clients received they can pulling them out within half an hour. It can help our clients to save a lot of time and labor cost during unloading.
Container loading; We will supply the materials list, the packing lists based on the contents we loaded into container. Showing the quantity, part no. length, container no, seal no.after finishing the container loading.
"Quality and service first "is our company's development goals. We hope we will develop together and win more projects together!
Packaging & Shipping
1. All standard components are packed in plywood box.
2. All steel structure weld components are packed with blanket or bubble-wrap to avoid scratch during loading and unloading.
3. All steel structure are packed in steel pallet together into container, much save loading and unloading time, labor cost.
4. All sandwich panel are packed in steel pallet.
5. Material components will be made container load plan, also make regional unloading plan to avoid retransport on site.
6. All equipment pasted with English lable
7. Small equipment will packed in carton or plywood box
