High quality galvanized anti-corrosion steel structure bracket
solar photovoltaic power generation
Due to its excellent characteristics, steel structure supports are
widely used in many fields. In the photovoltaic industry, in
large-scale ground-mounted photovoltaic power stations, it supports
large photovoltaic panels to receive sunlight, and in distributed
photovoltaic projects, it adapts to different roofs to help green
power generation. In the transmission line, the high-voltage
transmission tower and the communication base station tower are
supported by steel structure supports to ensure power and
communication transmission. In the field of architecture,
large-span gymnasiums and exhibition halls rely on it to build open
spaces, and in multi-storey and high-rise buildings, it is combined
with concrete to optimize structural performance. In industrial
scenarios, steel structure supports are also mostly used for
equipment platforms, trestles, and pipeline supports to provide
reliable support for various production activities.
| Material Name | Specification | Unit | Usage | Remarks |
| Hot-rolled H-beam | H300*150*6.5*9 | Root | Main support frame structure | Material Q345B |
| Hot-rolled channel steel | [10 | Root | Auxiliary support and connection components | Material Q235B |
| Hot-rolled angle steel | L50*5 | Root | Reinforcing ribs and corner connections | Material Q235B |
| Steel plate | δ = 8mm | Square meter | Bracket base and connection node plates | Material Q345B |
| High-strength bolts | M20*80 | Set | Component connection and fixation | Grade 8.8 |
| Common bolts | M16*50 | Set | Partial temporary fixation and secondary connections | Grade 4.8 |
| Nuts | Matched with bolts | Piece | Used in conjunction with bolts | / |
| Washers | Matched with bolts | Piece | Disperse pressure and prevent nuts from loosening | / |
| Galvanize | DN | Mm | Anticorrosive treatment of bracket surface | Select type according to design requirements |
Widely used to meet diverse needs

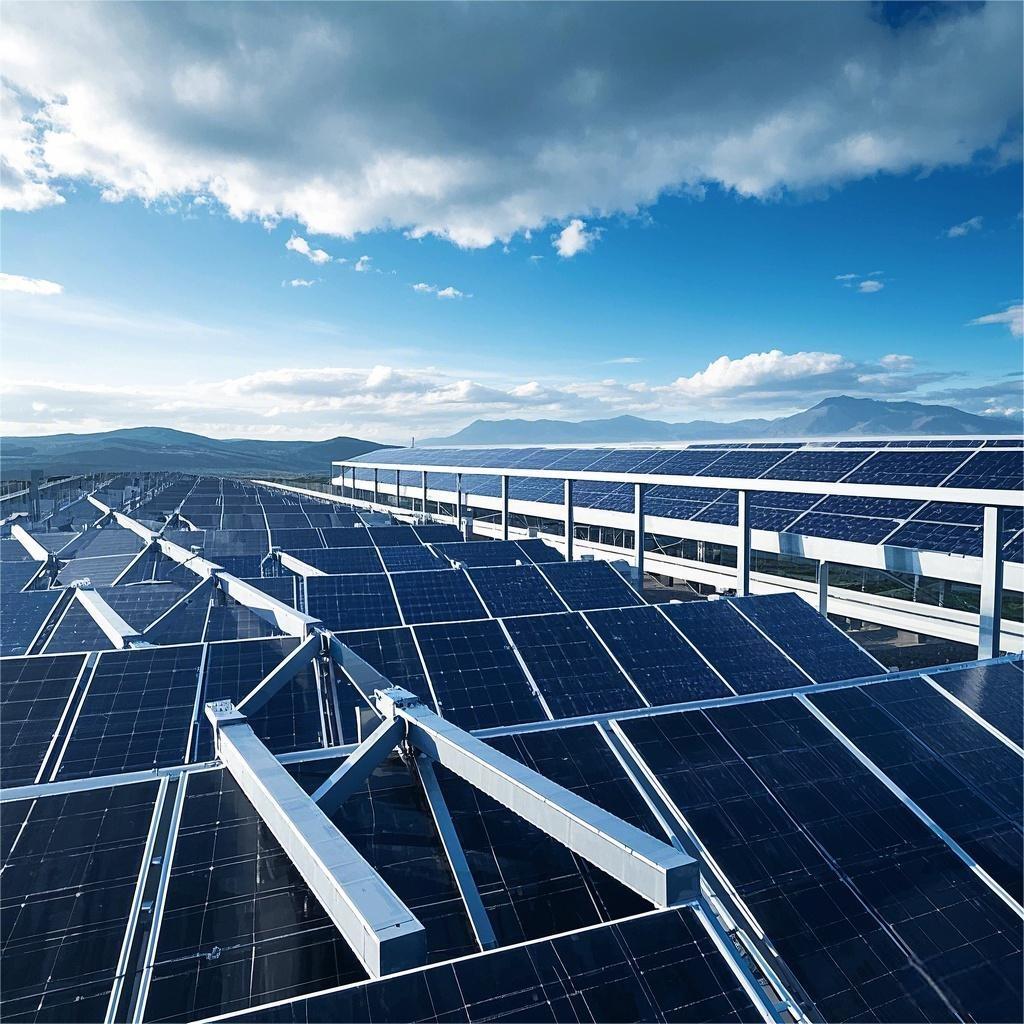

Large-scale photovoltaic power station: In the construction of
large-scale photovoltaic power station, steel structure
photovoltaic bracket has become the preferred product due to its
strong bearing capacity, excellent wind and seismic resistance, and
efficient installation method. It can meet the strict requirements
of the power station for the stability, reliability and economy of
the support, and lay a solid foundation for the long-term and
efficient operation of the power station.
Industrial plant roofs: Industrial plant roofs are usually large in
area and suitable for the installation of distributed photovoltaic
power generation systems. The lightweight design and flexible
installation method of the steel structure photovoltaic bracket
make it easy to adapt to the roof of various types of industrial
plants, realize the rapid installation and stable operation of the
photovoltaic power generation system without affecting the safety
of the plant structure, and help enterprises reduce energy costs
and improve energy efficiency.
Residential rooftops: For residential users, the installation of
photovoltaic power generation systems can not only achieve
self-sufficiency in green energy, but also obtain certain economic
benefits. With its beautiful design, simple installation process
and reliable performance, our steel structure photovoltaic bracket
has become an ideal choice for residential rooftop photovoltaic
power generation systems.
What can we offer you?
We have a professional team of experienced engineers and designers,
who are proficient in steel structure design principles and related
code standards, and can provide personalized design solutions
according to the different needs of customers, including project
use, load requirements, space layout, architectural style, etc.Fully consider the special requirements and site conditions of the
project, and provide customized design services. Whether it is a
complex long-span structure, special modeling requirements, or a
steel structure with special needs for anti-corrosion and
fire-proofing, we can design the optimal scheme that meets the
actual situation.With advanced production equipment and mature production
technology, production and processing are carried out in strict
accordance with the technological process.
Quality control points are set up in key processes such as cutting,
welding, forming, painting, etc., and advanced testing methods such
as non-destructive testing and weld flaw detection are used to
monitor the quality of products throughout the process to ensure
that the quality of each steel structure component meets the
standards.Quality certification system: A complete quality management system
has been established, and the quality management system
certification such as ISO 9001 has been passed to ensure that the
company's quality management work is standardized, standardized and
institutionalized. Conduct regular internal quality audits and
management reviews to continuously improve the quality management
system and improve product quality and service levels.
Company Profile
China CT Steel Structure Co.,Ltd of BY GROUP is a comprehensive industrial group integrating for
steel structure design, manufacture and installation. We have
estabulished over 21 years. Our factory is covering about 300000
square meters.
Main products: steel structural warehouse, workshop, high rise steel building,
school, hotel,office building, exhibition building, show room,
shopping mall, stadium,Agricultural project (stable/cattle barn,
poultry house,pig house), car parking, hangar,shed,storage room,
prefab house, container house, Sandwich panel,corrugated steel
sheet, C&Z sec- tion steel, door and windows and cranes.
Packing: we pack all the parts on the steel pallet and push into the
container when clients received they can pulling them out within
half an hour. It can help our clients to save a lot of time and
labor cost during unloading.
Container loading:We will supply the materials list, the packing lists based on the
contents we loaded into container. Showing the quantity, part no.
length, container no, seal no.after finishing the container
loading.
Installation drawings: we will supply the detailed installation drawings and video to
show how to install the products. Even send the engineers to site
for installation help.
"Quality and service first "is our company's development goals. We
hope we will develop together and win more projects together!
Packaging & Shipping
1. All standard components are packed in plywood box.
2. All steel structure weld components are packed with blanket or
bubble-wrap to avoid scratch during loading and unloading.
3. All steel structure are packed in steel pallet together into
container, much save loading and unloading time, labor cost.
4. All sandwich panel are packed in steel pallet.
5. Material components will be made container load plan, also make
regional unloading plan to avoid retransport on site.
6. All equipment pasted with English lable
7. Small equipment will packed in carton or plywood box
