High Strength Steel Structure For Petrochemical Reaction Chamber
Product Description
1. Frame columns: As the main vertical load-bearing members, they
bear vertical and horizontal loads from beams, equipment and other
structural components. Hot-rolled or welded wide
flange H-section steel is usually used, and the cross-section size
is determined according to the calculated axial force, bending
moment, slenderness ratio and other requirements. In order to
enhance stability, the bottom of the frame column is firmly
connected to the foundation through foundation bolts, and the top
is reliably connected to the frame beam.
2. Frame beam: mainly bears the vertical load generated by
equipment, materials and operators on the floor or platform, and
transfers it to the frame column. Generally, H-shaped steel similar
to frame columns is selected and connected with the frame columns
by welding or high-strength bolts to form rigid or semi-rigid
joints to ensure the overall stability and spatial stress
performance of the structure. The span and spacing of beams are
determined according to equipment layout and process requirements,
and common spans are between 6 - 12 meters.
Product Parameters
Column and beamb | Welding steel or hot-roll steel |
Steel surface treatment | Hot-dip galvanized or painted(all colors we can do) |
Steel grade | Q235,Q345,ASTM,EN10225 |
Purlin and girt | C and Z section steel |
Connection Method | All bolt connection,easy installation |
Wall&Roof | Sandwich panel with EPS or rock wool insulation |
Wall&Roof | Metal sheet with blue red white grey color or customize |
Door | Rolling shutter door or sandwich panel sliding door |
Window | Plastic shutter door or sandwich panel sliding door |
Bolt and nuts | High strength bolt and ordinary bolt |
Design life span | 25 years and 50 years |
Place of origin | Qingdao city, Shandong province, China(Mainland) |
Business type | Manufacture and trading |
Packaging Details | Bunding with pallet or customize |
Product Advantages
Good toughness and ductility: Steel has good toughness and
ductility, and can absorb and dissipate a large amount of energy
under natural disasters such as earthquakes and wind disasters or
other accidental loads to avoid sudden brittle failure of the
structure. In petrochemical production, some sudden dynamic loads
may be faced, such as vibration caused by equipment failure,
explosive impact, etc. This performance of the steel structure
frame can ensure that the structure can still maintain a certain
carrying capacity and stability under these circumstances.,
improving the safety of the entire production device.
High strength and light weight: Steel has higher strength and lower
density. Compared with traditional concrete structures, the dead
weight of steel structural frames is lighter under the same load.
This not only reduces the bearing pressure of the foundation,
reduces the cost and construction difficulty of the foundation
project, but also facilitates transportation and installation. For
example, in some large petrochemical projects, the use of steel
structural frames can greatly reduce the weight of the entire
device, which is particularly important for projects built on soft
soil foundations.
Product Application

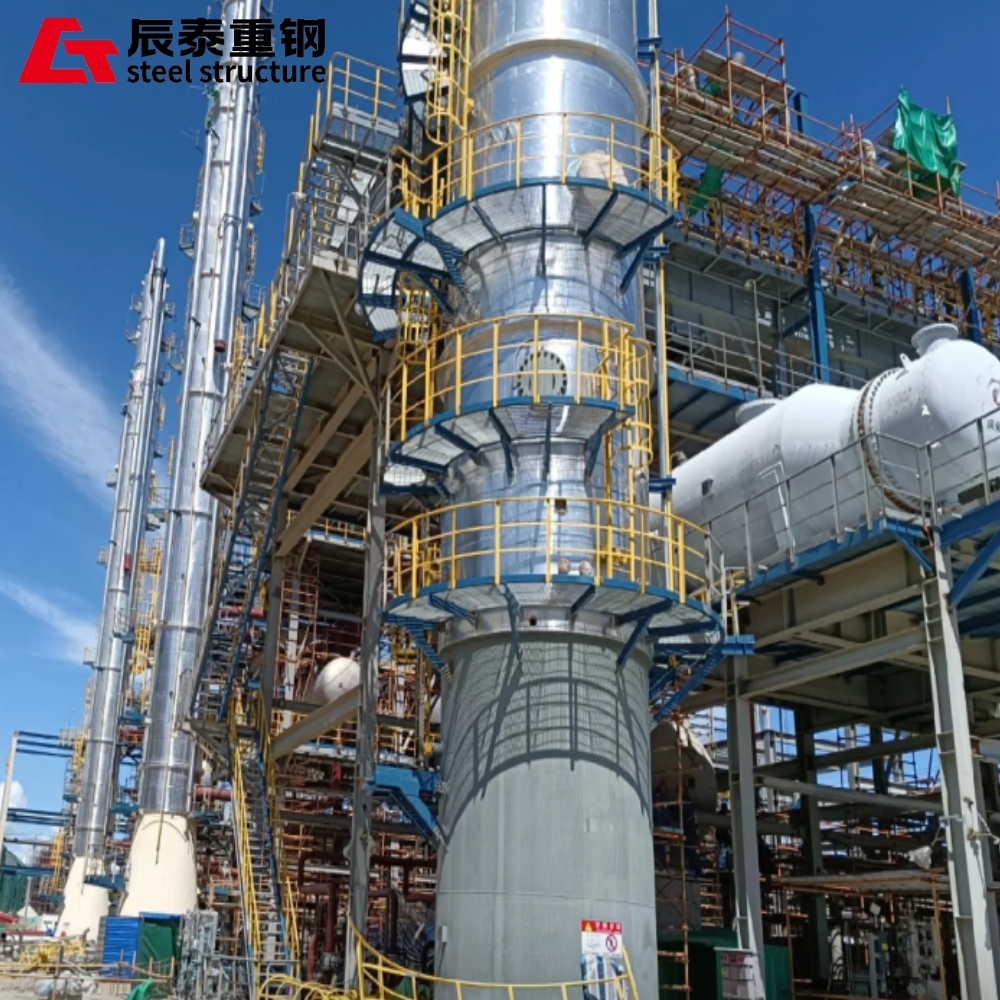

Reaction towers: In production processes such as petroleum refining
and chemical synthesis, many reactions need to be carried out at
specific heights and spaces. High-rise steel structural frames are
used to support various reaction towers, such as catalytic cracking
towers in refineries, cracked gas separation towers in ethylene
units, etc. These reaction towers are often of high height, large
diameter, and carry complex chemical reactions and material
transfer processes internally. With its high carrying capacity and
stability, the steel structural frame can provide reliable support
for the reaction tower and ensure the smooth progress of the
reaction.

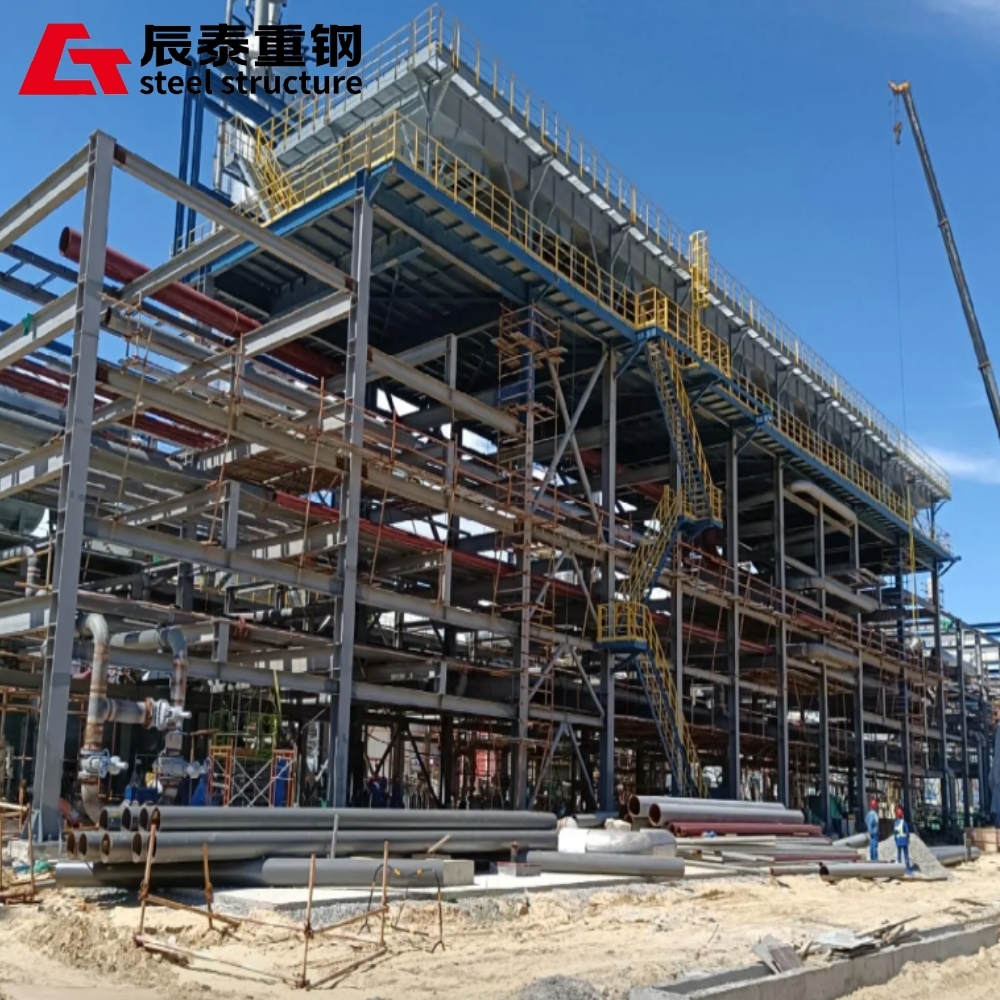

Large-scale equipment support: Large compressors, pumps and other
equipment in petrochemical production usually need to be installed
on a platform at a certain height to facilitate material
transportation, operation and maintenance. The high-rise steel
structure frame can build a multi-story platform structure, and
these equipment can be reasonably arranged at different heights to
achieve smooth connection of the process flow. For example, in
natural gas processing plants, large compressor units are often
installed on second-or three-story platforms supported by steel
structural frames to facilitate pipeline connections and equipment
maintenance.
Product images
Group Introduction

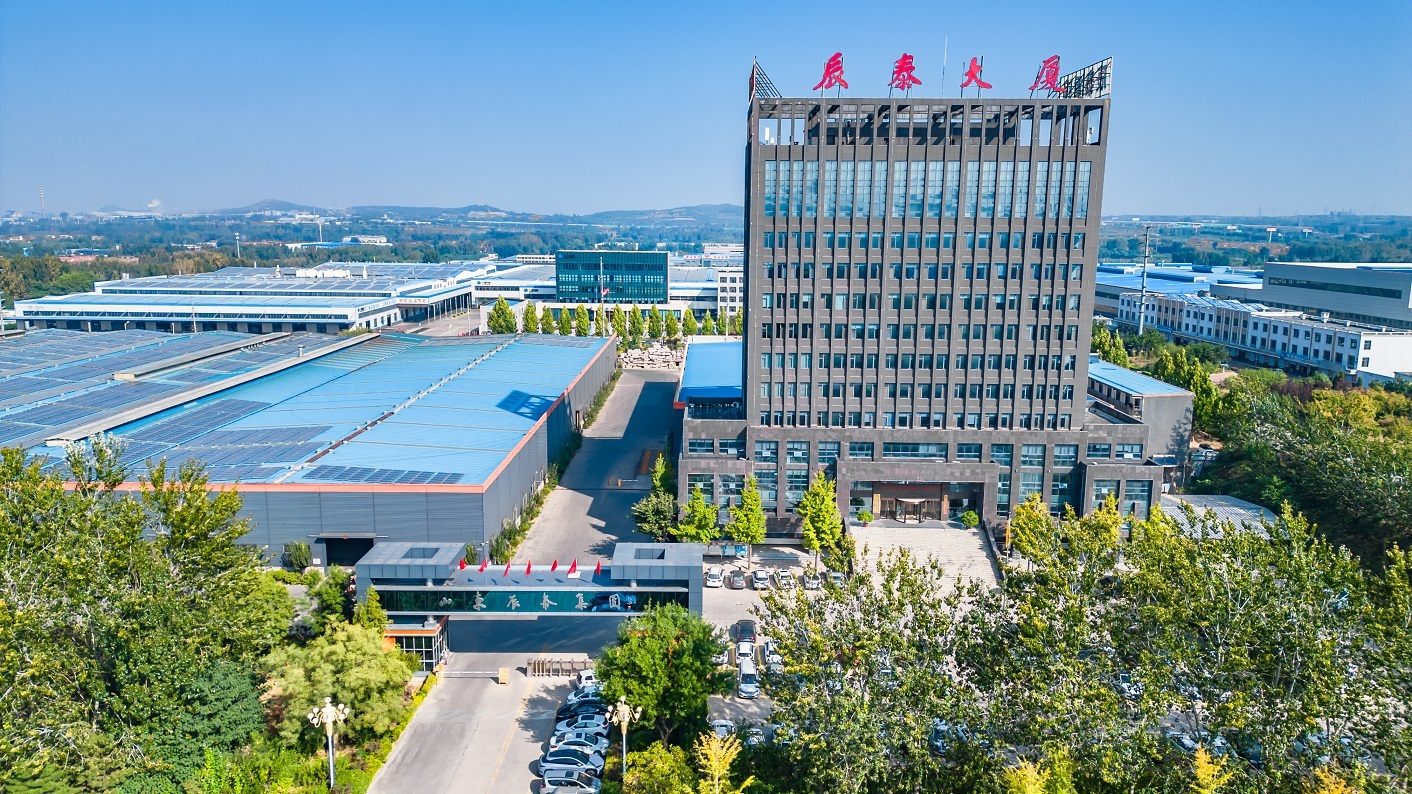

China CT Steel Structure Group Co., Ltd. is a comprehensive industrial group that integrates steel structure
research and development, design, manufacturing, production, and
installation. Since its establishment in 2004, it covers an area of
approximately 300000 square meters and produces 200000 tons of
steel structures annually. We have over 500 well-trained employees,
more than 100 professional design teams, after-sales service teams,
and many advanced equipment.
The company has 30 steel structure production lines, specializing
in the design, manufacturing, and installation of industrial and
civil buildings such as steel structure factories, warehouses,
high-rise steel structure buildings, office buildings, exhibition
halls, sports halls, parking garages, prefabricated houses, and
agricultural projects. We are committed to providing customers with
innovative solutions that not only meet their expectations, but
also exceed them.
Our industrial metal buildings have some outstanding
characteristics, such as:
→With our large industrial metal buildings, you don't have to worry
about termites and rot. They require little maintenance and can
serve your business for decades.
→Steel is recyclable, so if you want to demolish a steel industrial
building for any reason, you can do it in an environmentally
responsible manner.
→Our prefabricated steel commercial buildings can be installed
without any professional assistance. The step-by-step instructions
are easy to follow and can easily complete tasks with a small group
of highly motivated people.
→Our easy-to-assemble structure is very economical. This is true
not only in terms of first purchase, but also in terms of long-term
maintenance. This is driven part by the price of steel structures
and is a result of our expertise as a leading distributor of
prefabricated commercial metal buildings.
→With customizable insulation, gutters and downspouts, frame
openings, galvanized secondary members and angled structures, you
have the opportunity to create a highly elegant industrial space
suitable for any type of business.
The cost-effectiveness, time efficiency, design flexibility,
structural integrity and sustainability of commercial steel
buildings make them ideal for businesses of all sizes.
Fully customizable prefabricated steel commercial buildings
♥ We found that what initially attracted customer interest was the
low price of steel structures. But since then, they are always
pleasantly surprised to find that our prefabricated steel
commercial buildings are highly customizable. Basically, our
prefabricated buildings can meet any of your needs. This is because
we use a clear-span design that allows you to freely design the
interior of the building. Considering the low cost of steel
buildings, you will be able to customize the structure as you see
fit. By saving on the initial costs of building and construction,
you can add features such as climate control, multiple room
partitions, or any other features you can think of. Use our 3D
architectural designers to design the building of your dreams and
explore the possibilities for yourself.
The following points need to be noted when customizing
prefabricated industrial steel structures:
♣All customization requests can be added when placing an order.
♣When providing your custom measurements, make sure they are
accurate.
♣The cost of customization will increase the cost of basic steel
building prices.
CT Steel Structure will bring you the best products
Many times, we hear stories from customers who have chosen cheaper,
less experienced prefabricated metal building dealers and are very
disappointed with the layout and overall experience. We want you to
know that our prefabricated commercial steel buildings are not only
more cost-effective, but also utilize the latest equipment and
materials available today. Our goal is to build the perfect
industrial steel structure for your business while saving you the
pressure of breaking your budget plans.
When you choose CT Steel Structures, you can not only design new
commercial steel buildings, but also have the support of an
educated and experienced team to help you answer any questions and
guide you through the entire project.
Our continued success in the prefabricated steel structure industry
is mainly due to two factors:
♥excellent customer service and decades of experience.
♥We are committed to creating the best quality for our customers at
the most suitable price
